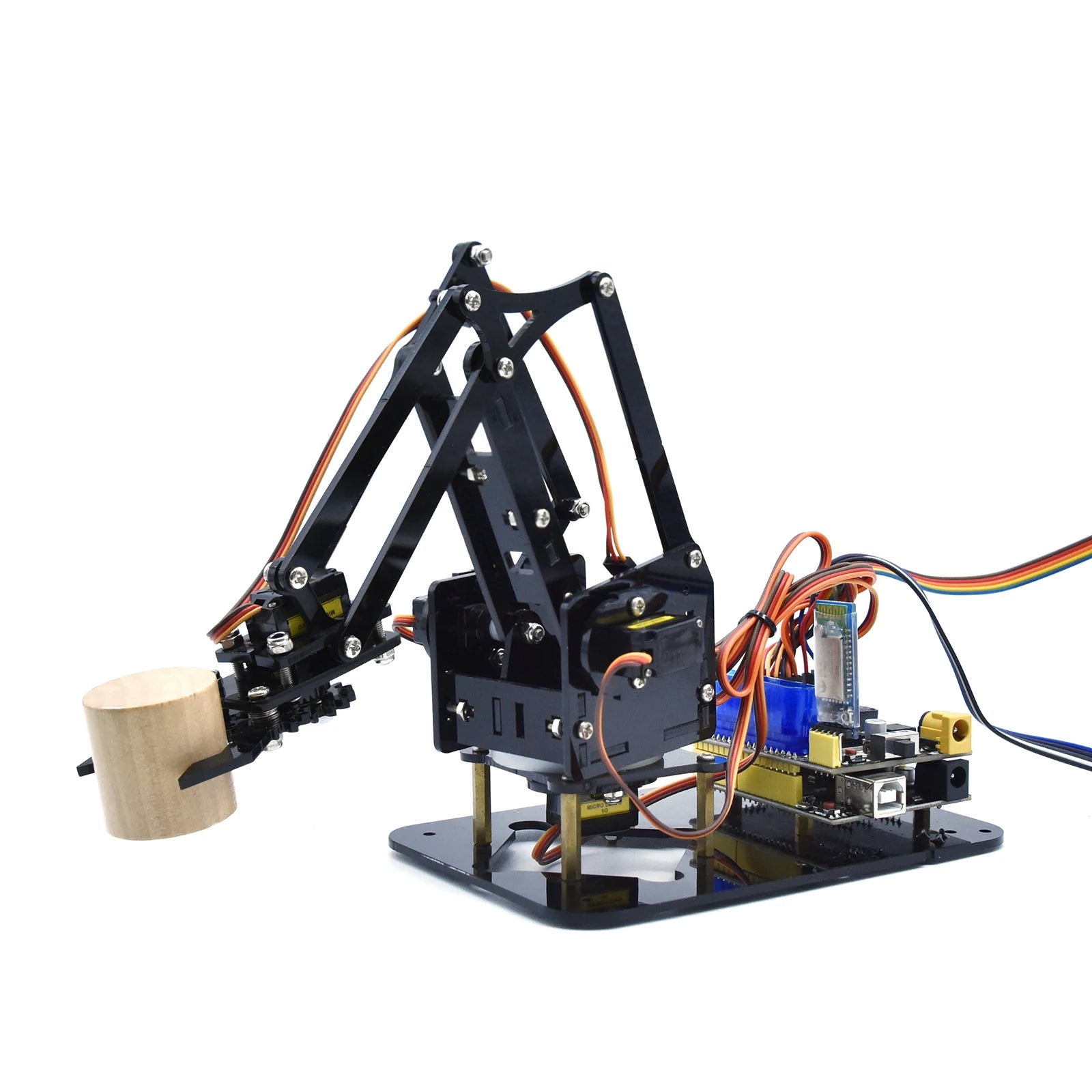

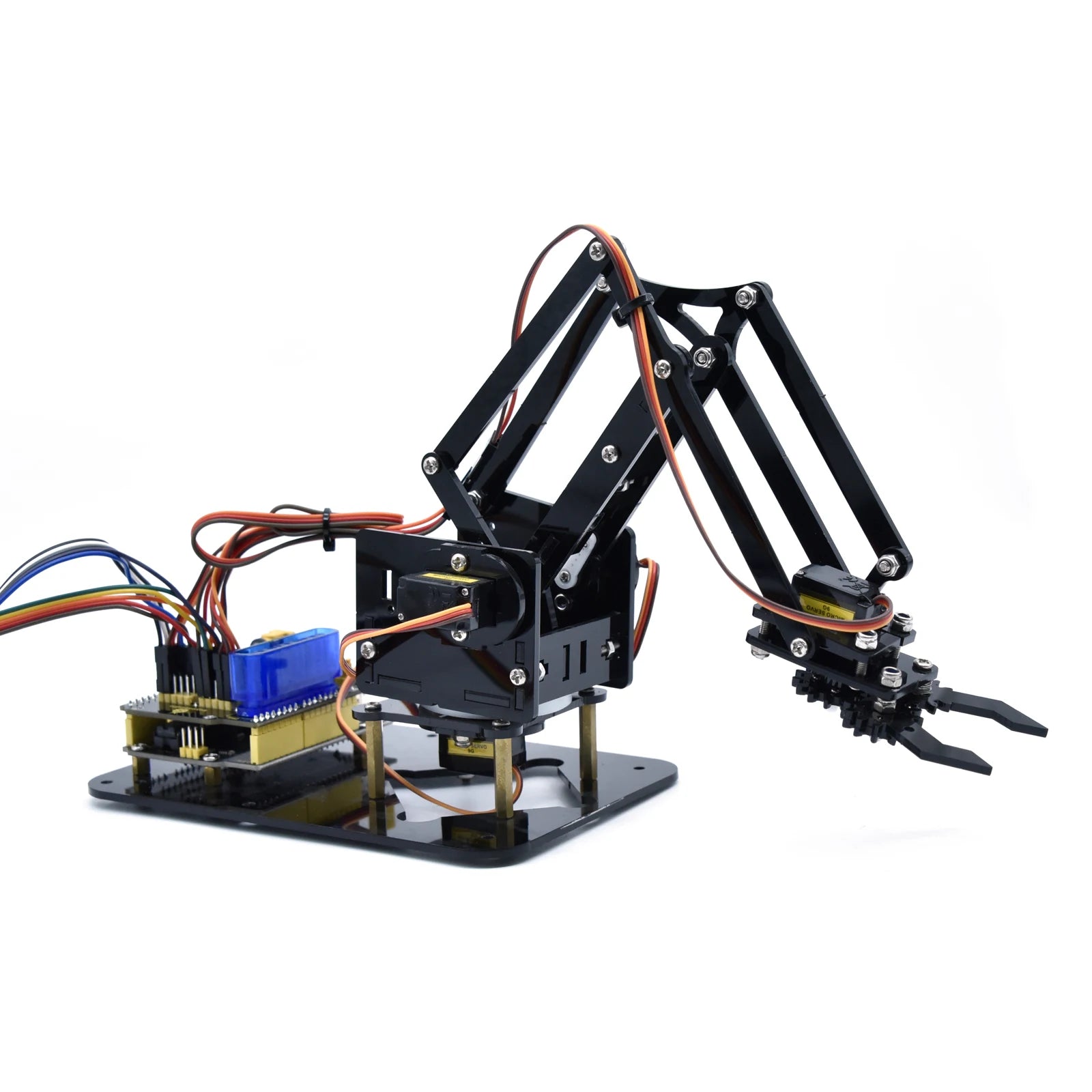

Keyestudio STEM 4DOF Mechanical Robot Arm Kit for Arduino

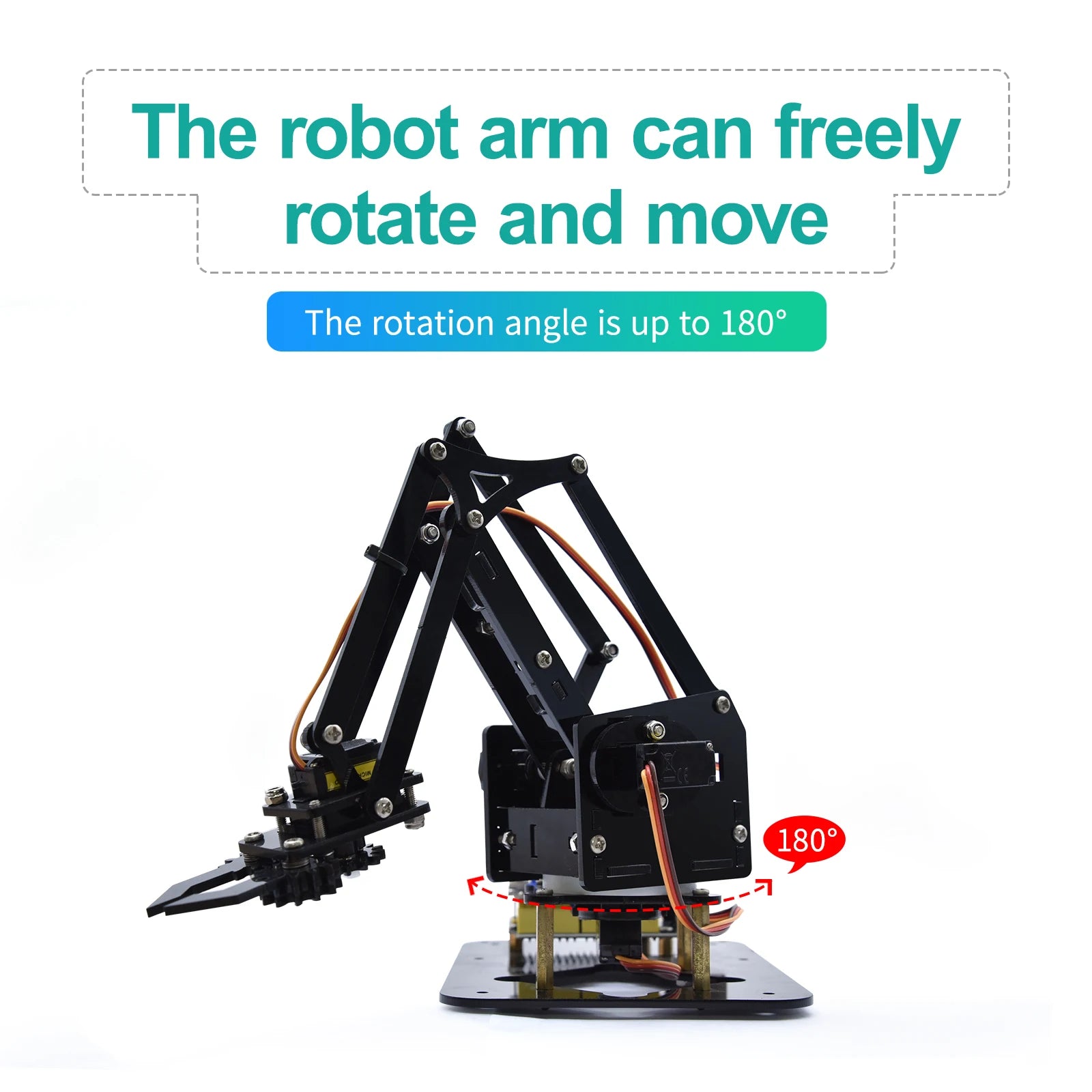

Build and Program Your Own Robotic Arm Embark on an inspiring journey into the world of robotics and programming with the Keyestudio 4DOF Robot Arm Kit. This DIY kit enables you to construct a fully controllable mechanical arm using the Arduino platform. It is designed to help beginners and enthusiasts understand the mechanics of automated movements and the logic behind servo control.

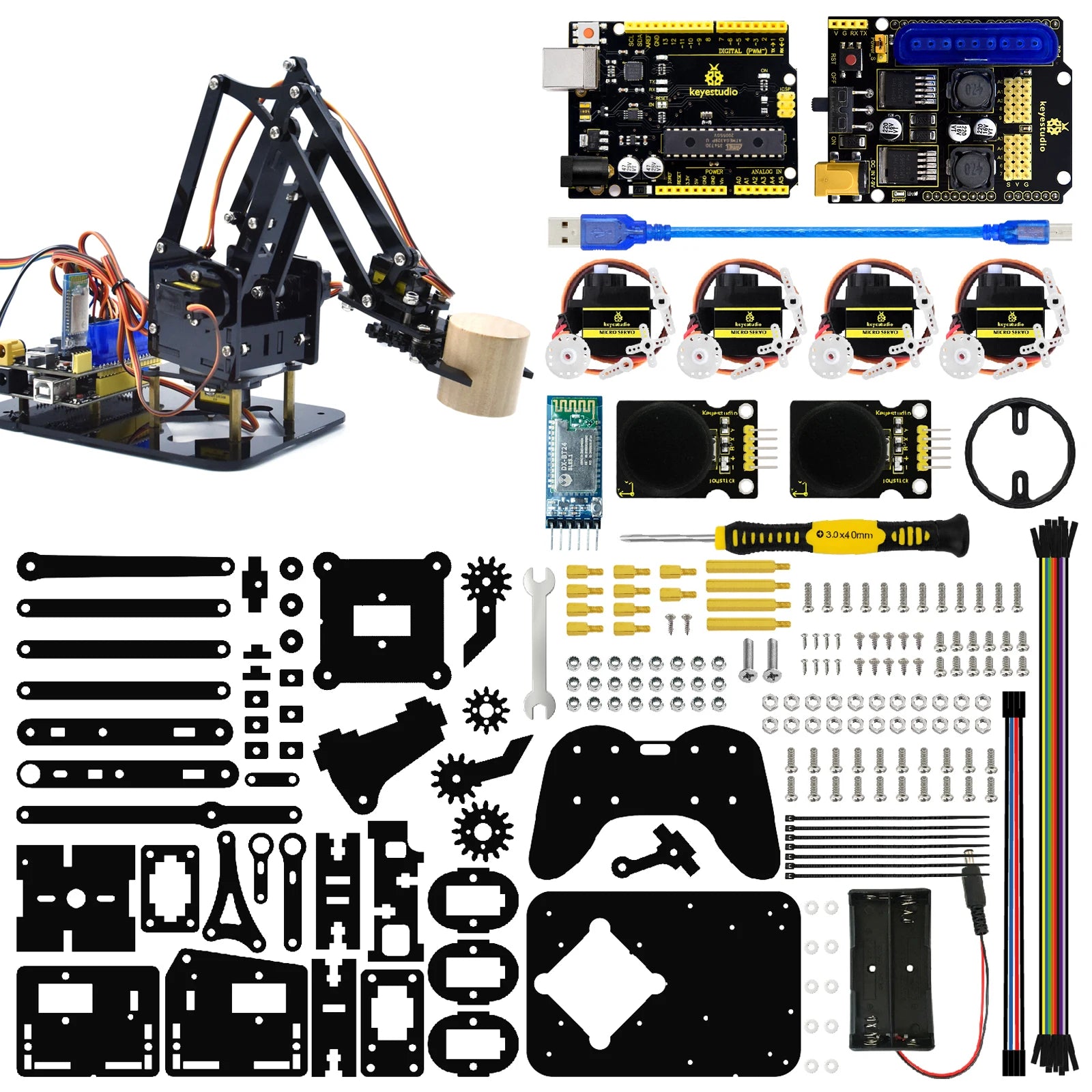

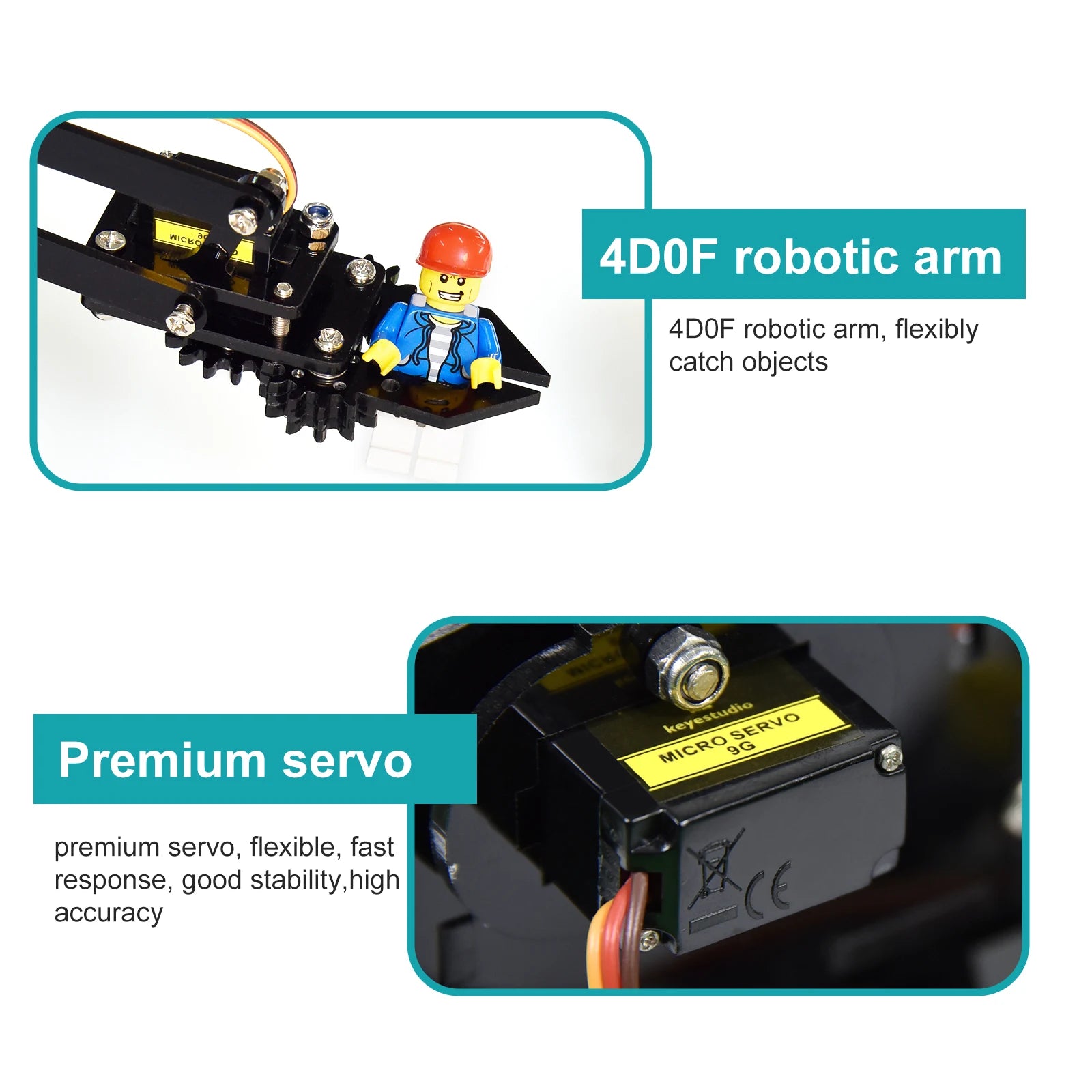

Comprehensive Learning Experience From assembly to debugging, this kit covers it all. You will receive detailed installation instructions and debugging methods to guide you from a beginner level to mastering robotic control. It uses a REV4 microcontroller and joystick modules to manipulate the angle and degree of four separate servos, allowing for complex movement sequences.

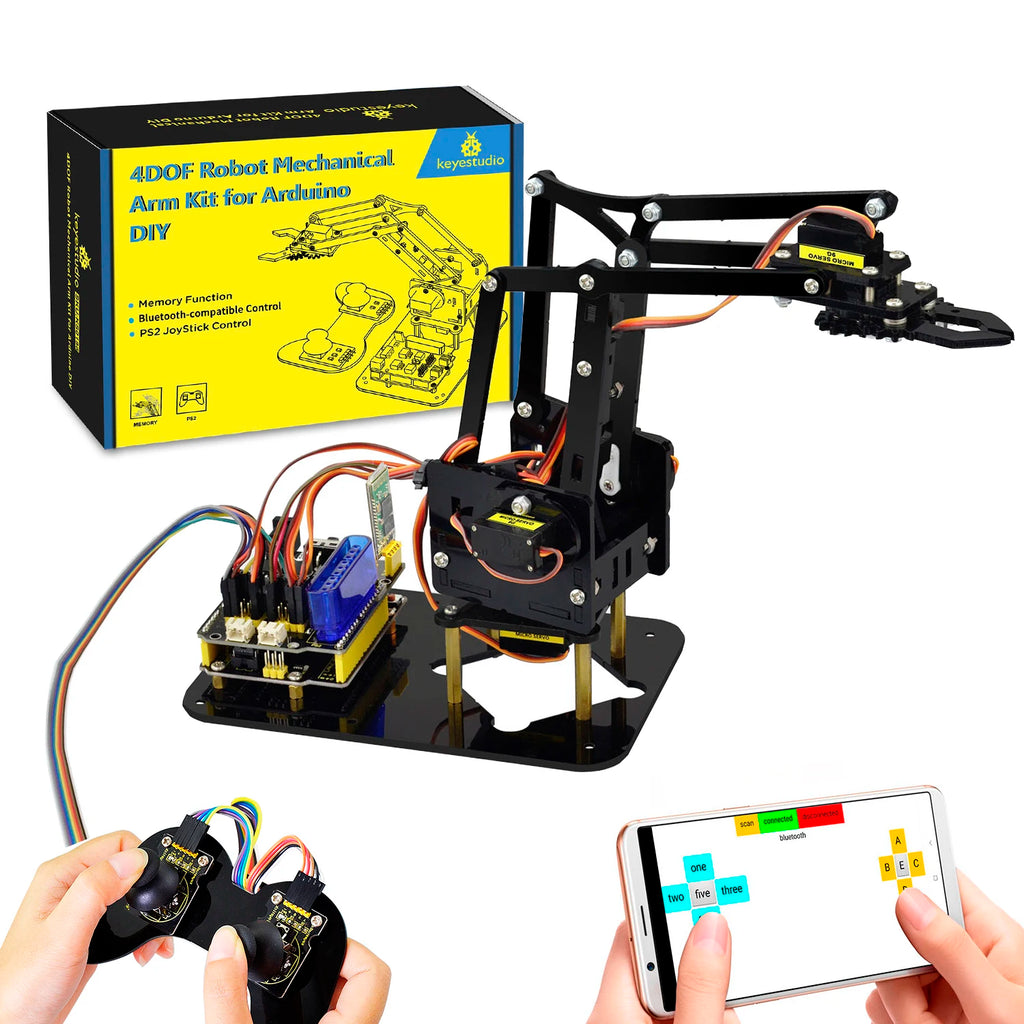

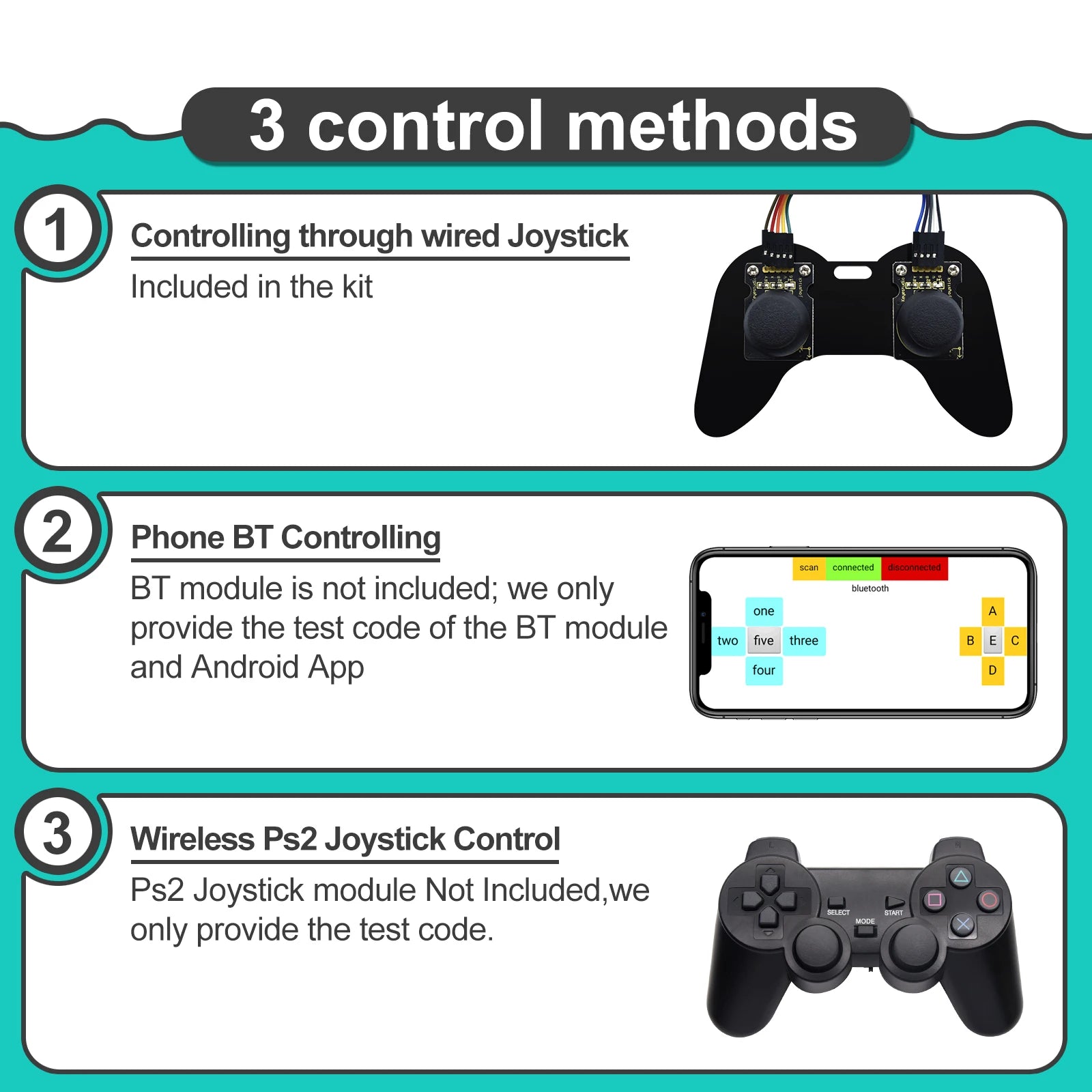

Three Ways to Control This robot arm is designed for versatility. While it comes ready for wired control, the expansion board is capable of supporting advanced wireless methods with additional components.

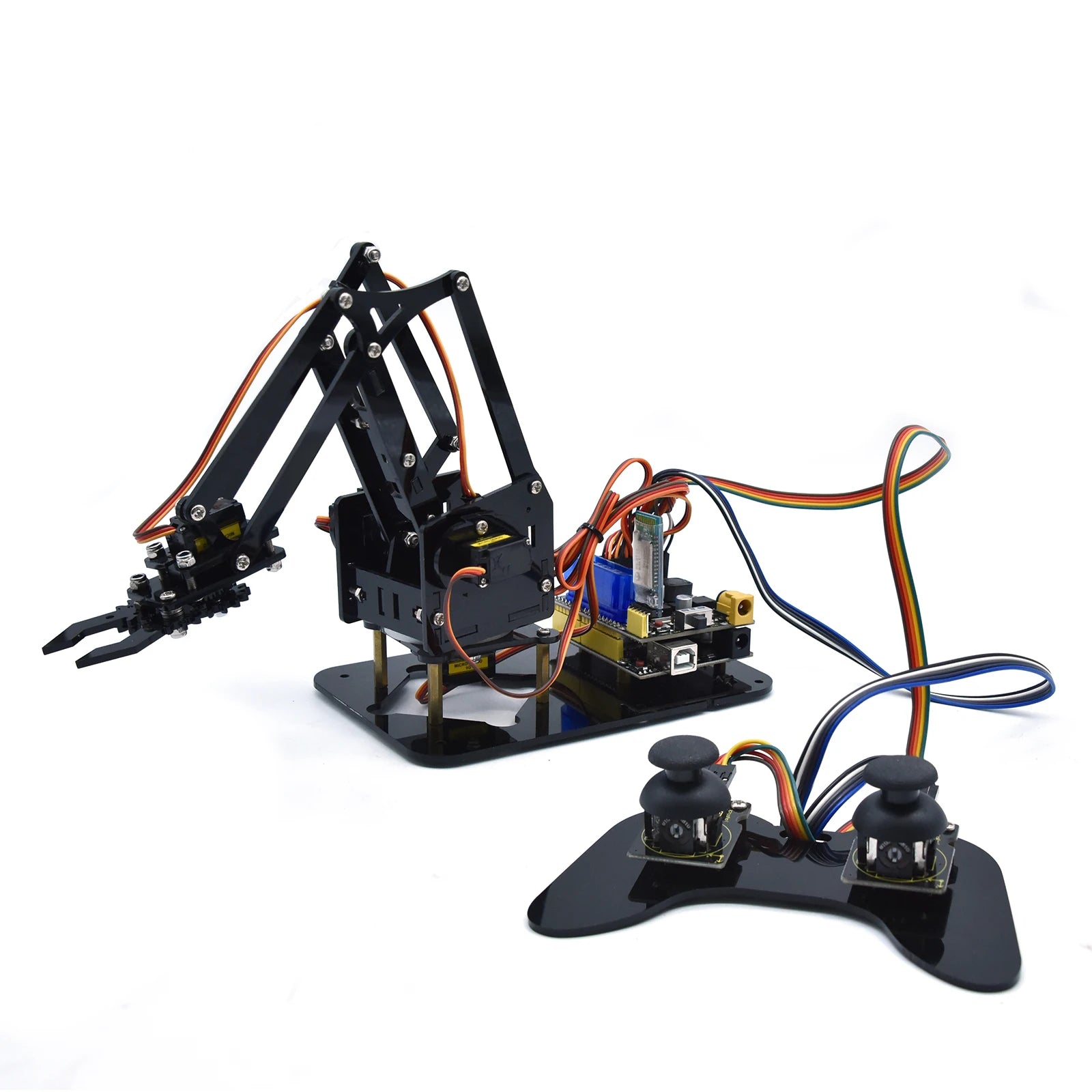

  • Wired Joystick Control (Included): Use the joystick modules included in the kit for immediate, precise manual control.

  • Smartphone Bluetooth Control (Supported): Supports control via Android App. Note: The HC-06 Bluetooth module is not included; however, we provide the test code and App.

  • Wireless PS2 Joystick Control (Supported): Features a PS2 interface compatible with Sony PS2 receivers. Note: The PS2 Joystick module is not included; however, we provide the necessary test code.

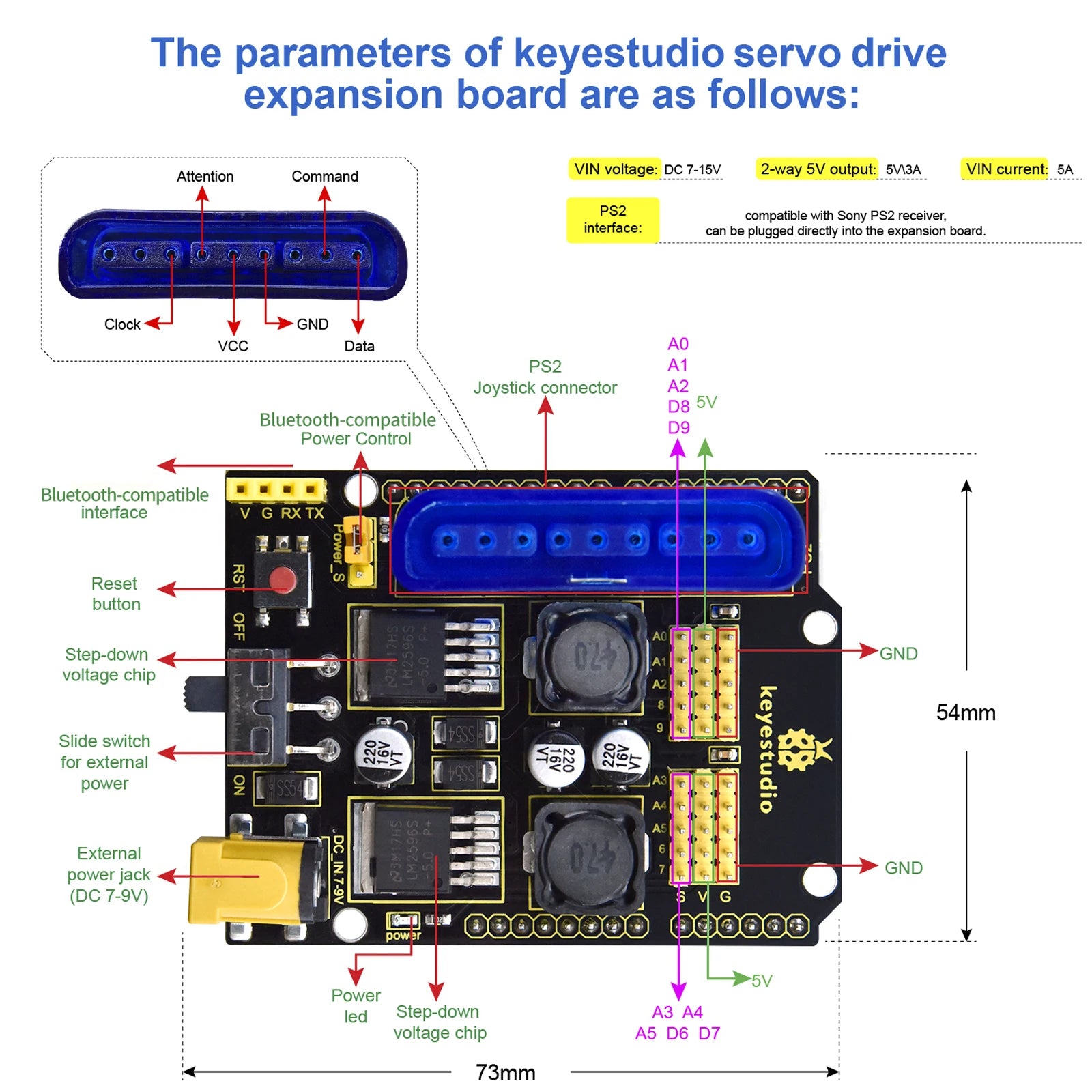

Powerful Expansion Board The kit features the Keyestudio TB6612FNG Motor/Servo Drive Expansion Board, designed to handle the power needs of the servos efficiently.

  • Input Voltage (VIN): DC 7-15V

  • Input Current: 5A

  • Output: Two-way 5V/3A output

  • Drive Current: Average 1.2A / Peak 3.2A

  • Interface: Includes direct plug-in support for PS2 receivers.

  • Dimensions: 73mm x 53.34mm

Technical Specifications

  • Brand: Keyestudio

  • Model: 4DOF Robot Arm Kit

  • Application: Educational Robot / Arduino Compatible

  • Supply Voltage: DC 7-15V

  • Operating Temperature: 0-40°C

  • Condition: New

  • Package Type: TQFP

Power & Battery Information

  • Batteries Not Included: Due to standard shipping regulations, this kit does not include batteries.

  • Battery Requirement: This kit uses a battery holder designed for 18650 batteries. Please ensure you have these available to power your robot arm.

Online Documentation Access the full tutorial and assembly guide here: Keyestudio Wiki
