4WD Smart Robot Car Kit for Raspberry Pi

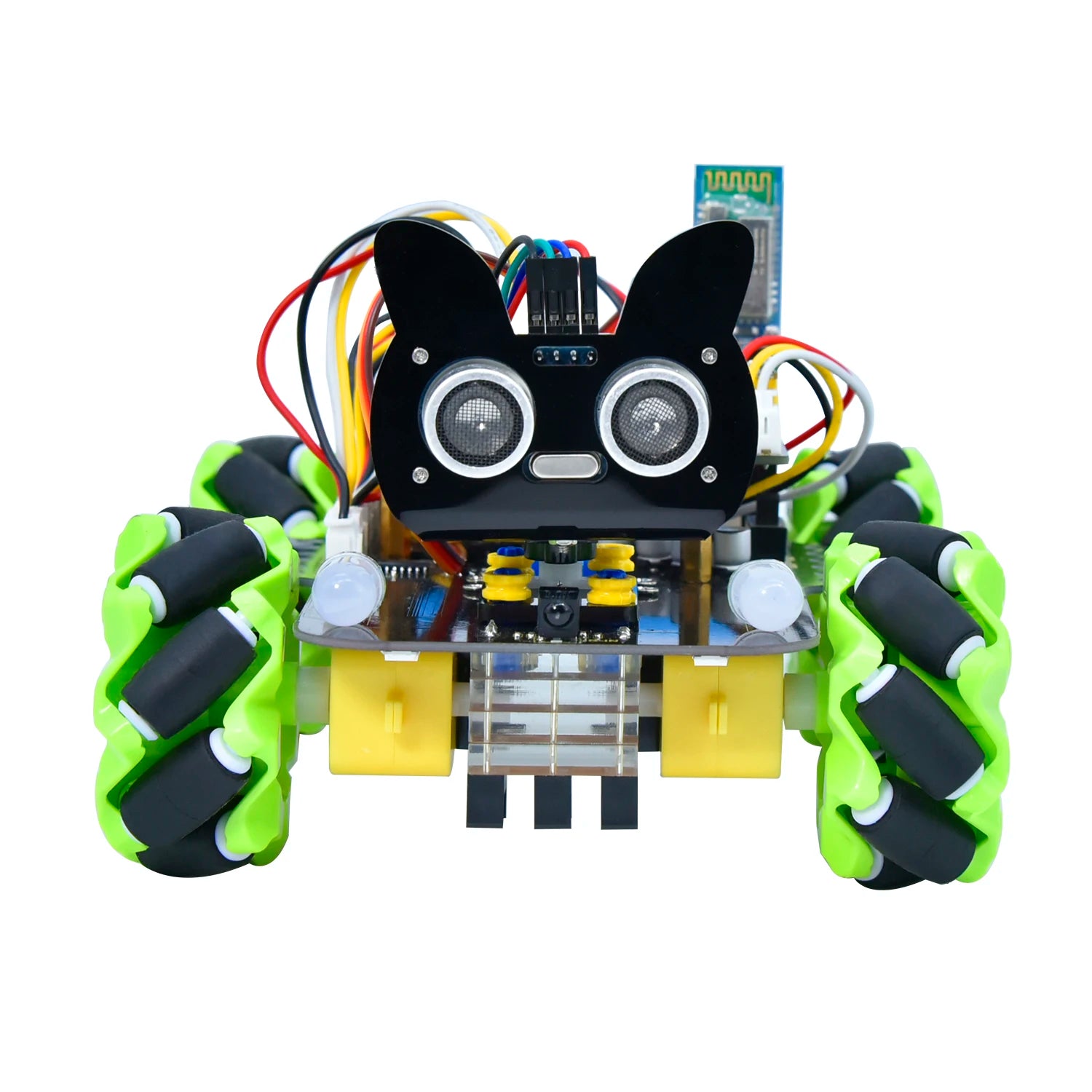

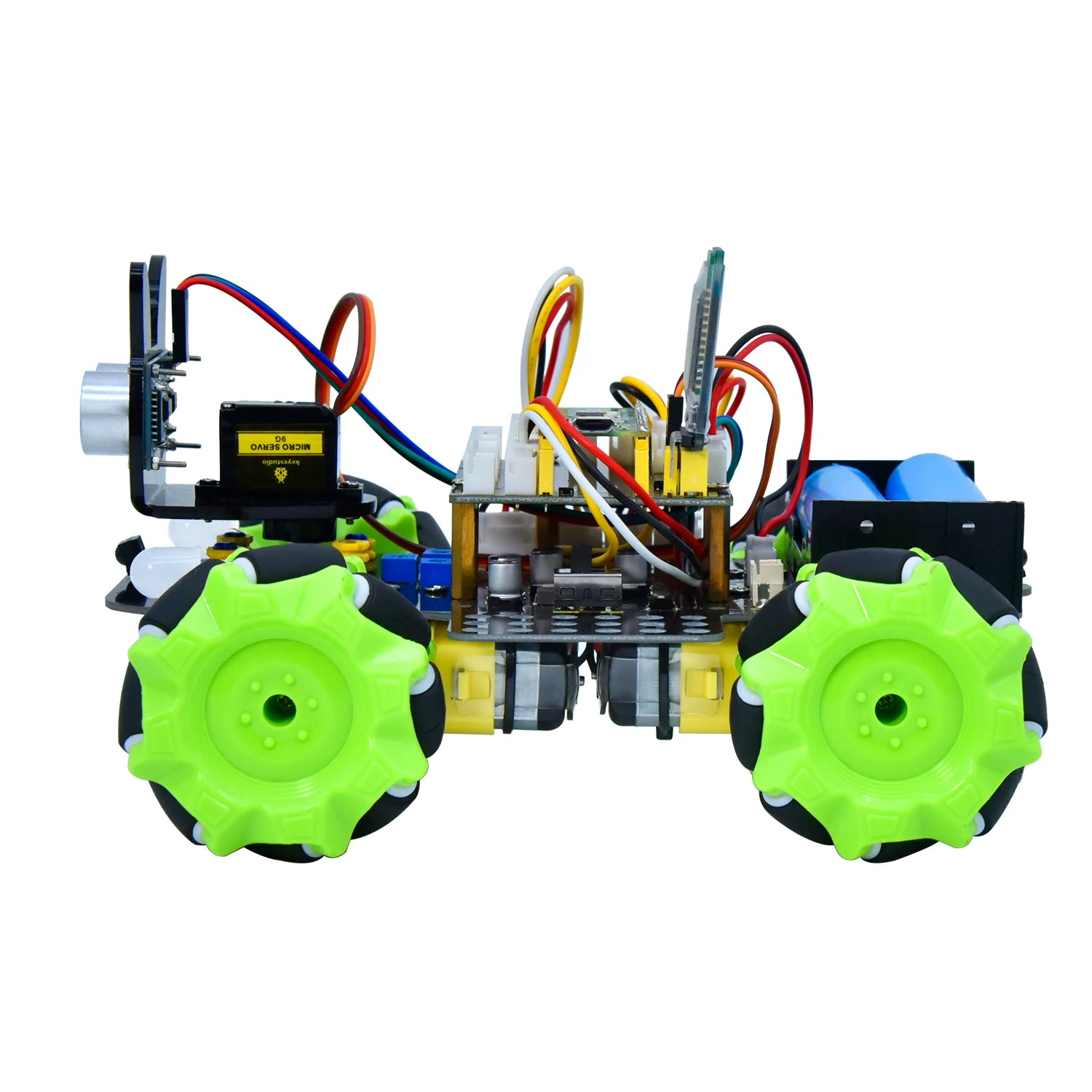

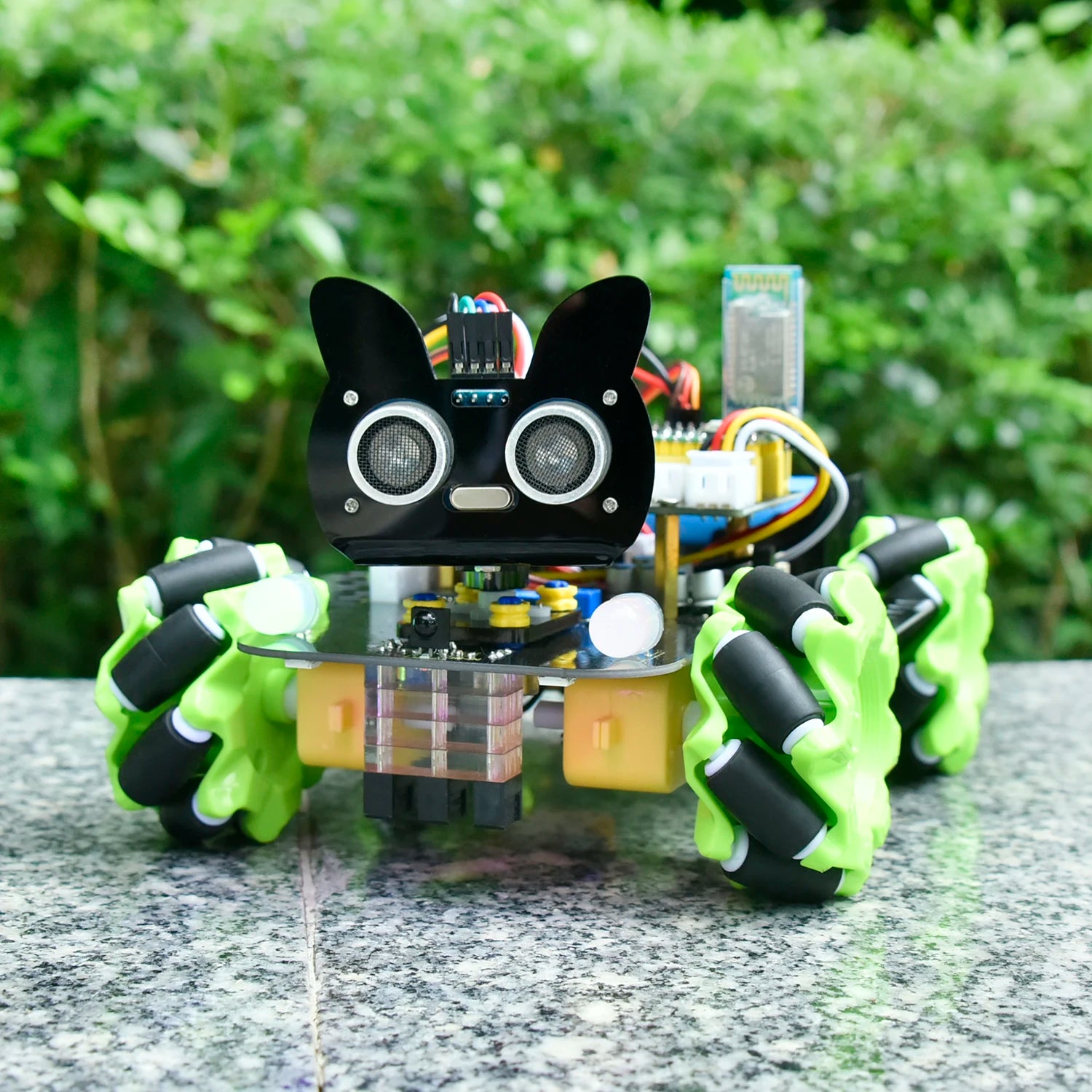

Keyestudio 4WD Smart Robot Car Kit for Raspberry Pi (KS3029)

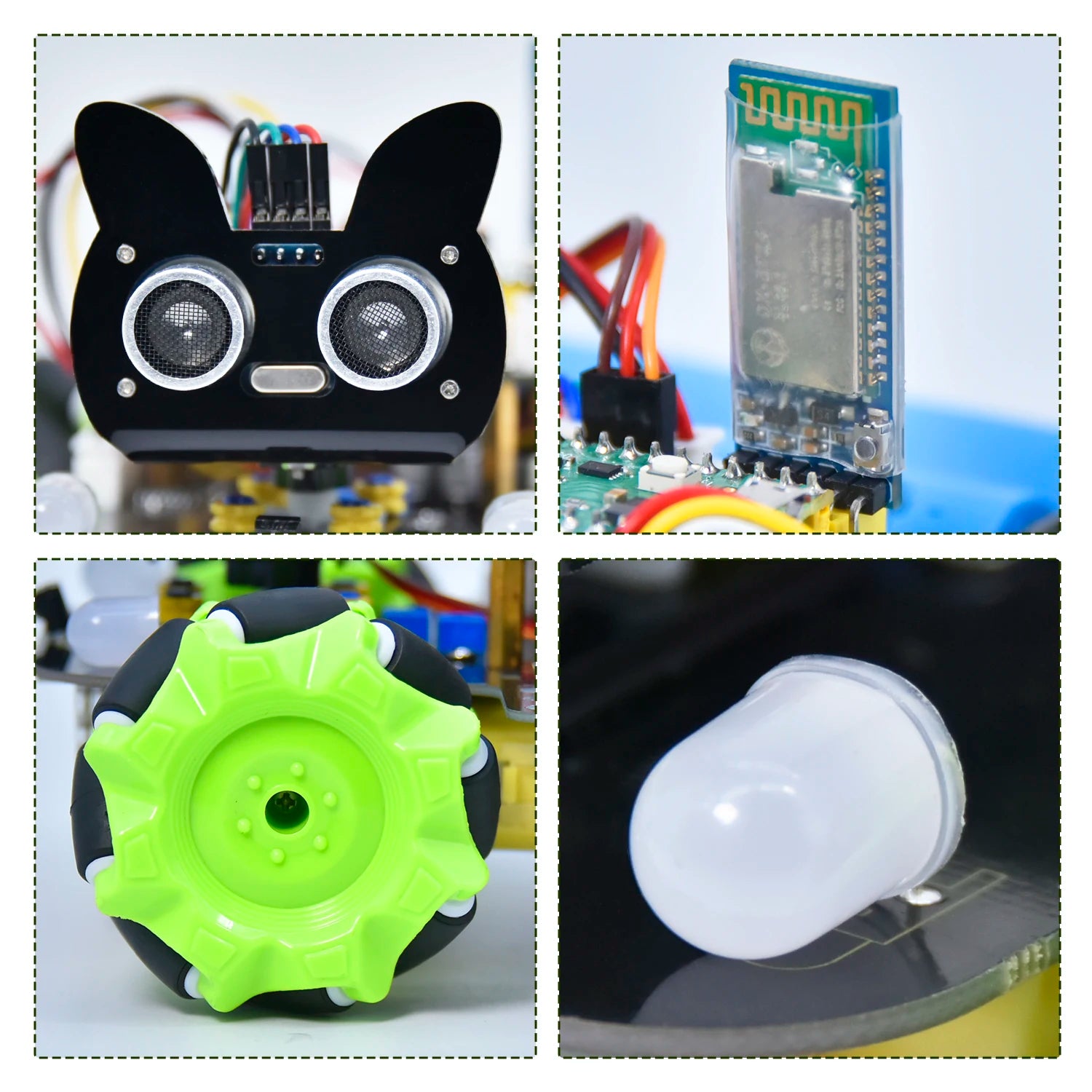

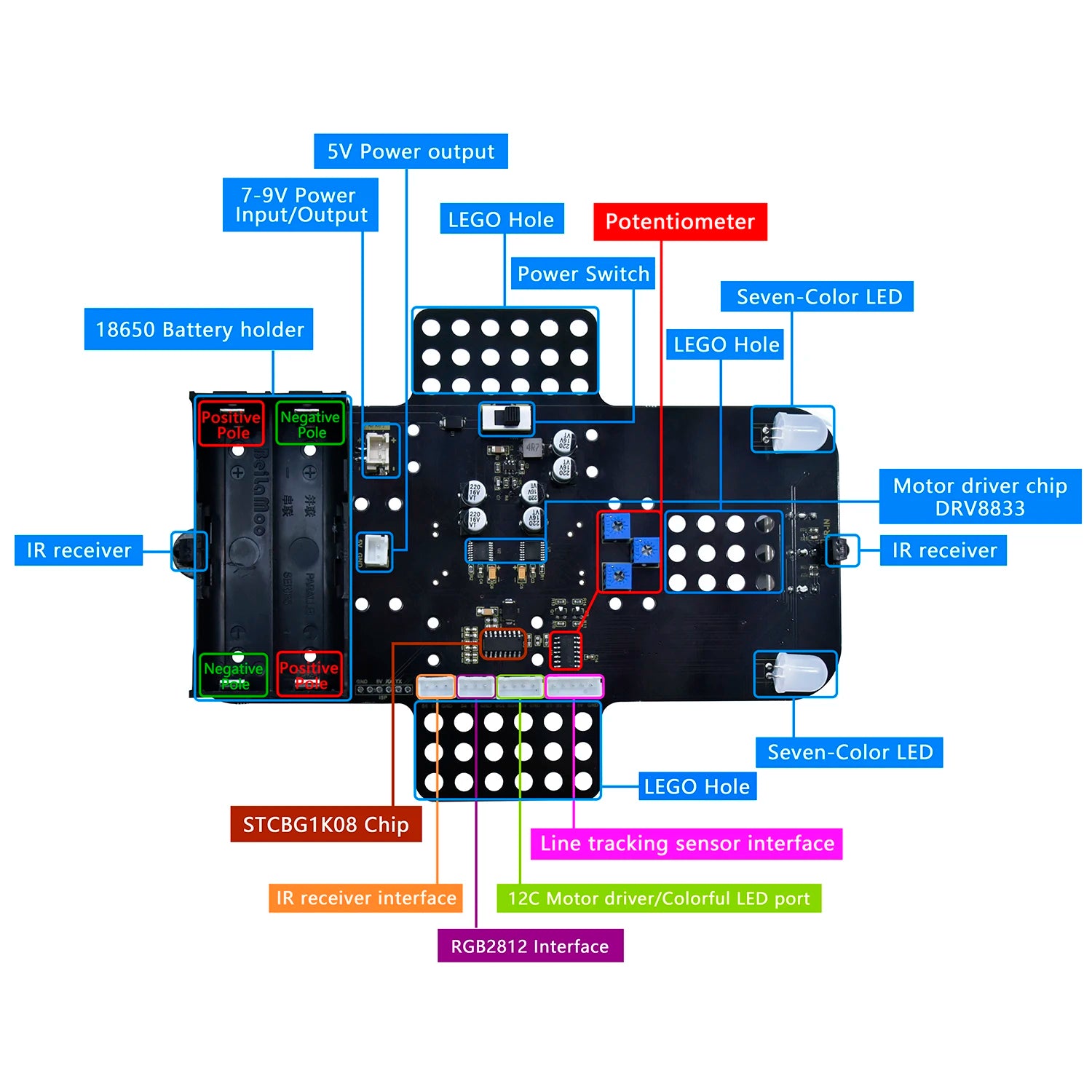

All-in-One Integrated Design The Keyestudio KS3029 Robot Car is a feature-packed platform designed specifically for Raspberry Pi enthusiasts. Unlike traditional kits that require messy wiring for every module, this robot features a highly integrated base plate. The motor drivers, 3-channel line tracking sensors, dual IR receivers (positioned at the front and tail for accurate reception), and lighting modules are all built directly into the chassis, making assembly cleaner and much easier.

Advanced Lighting & Control This robot is designed to be both functional and visually striking.

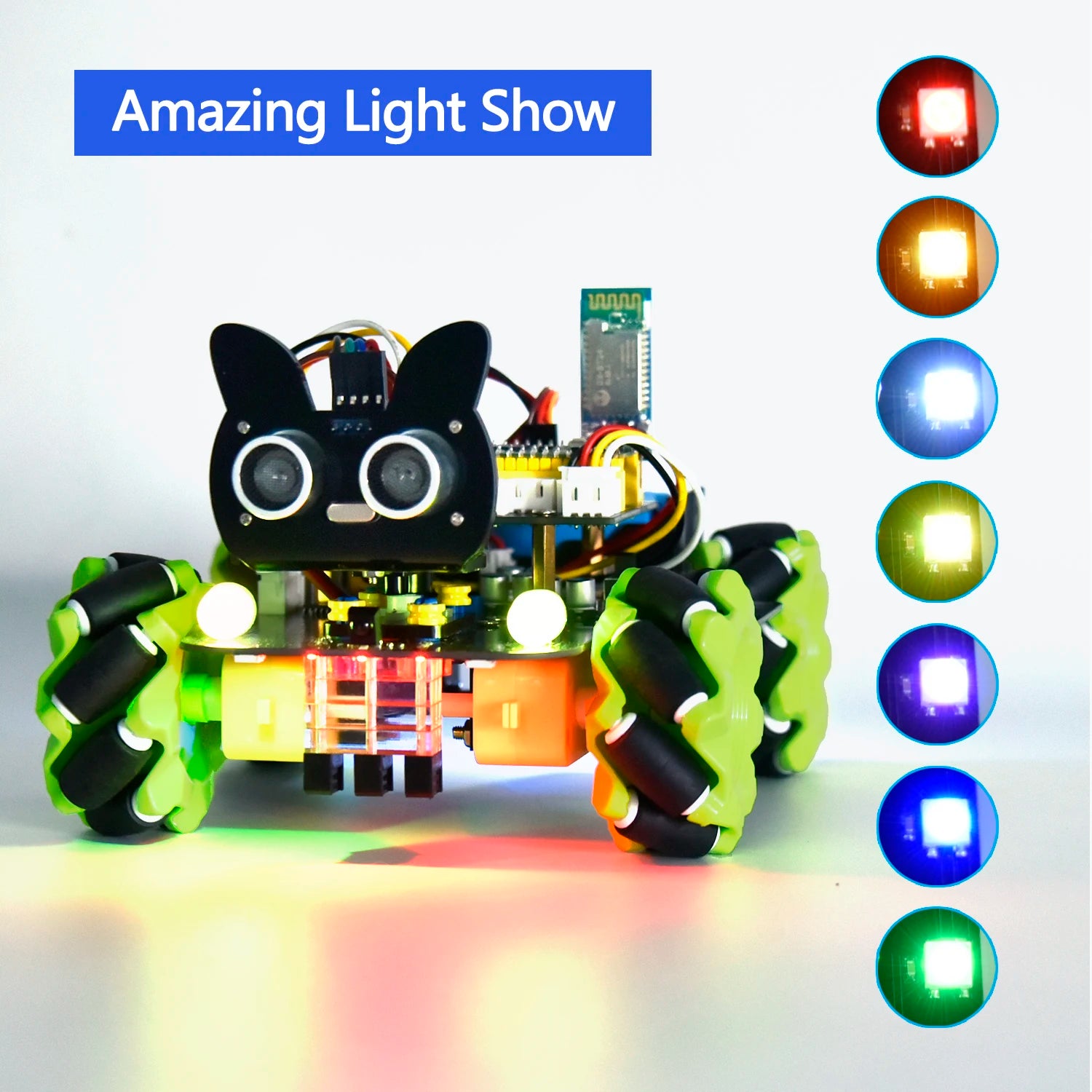

• Dynamic Lighting: Equipped with 4 WS2812 RGB LEDs to display a full range of colors, plus 2 dedicated "Seven-Color" lights that function as directional turn signals.

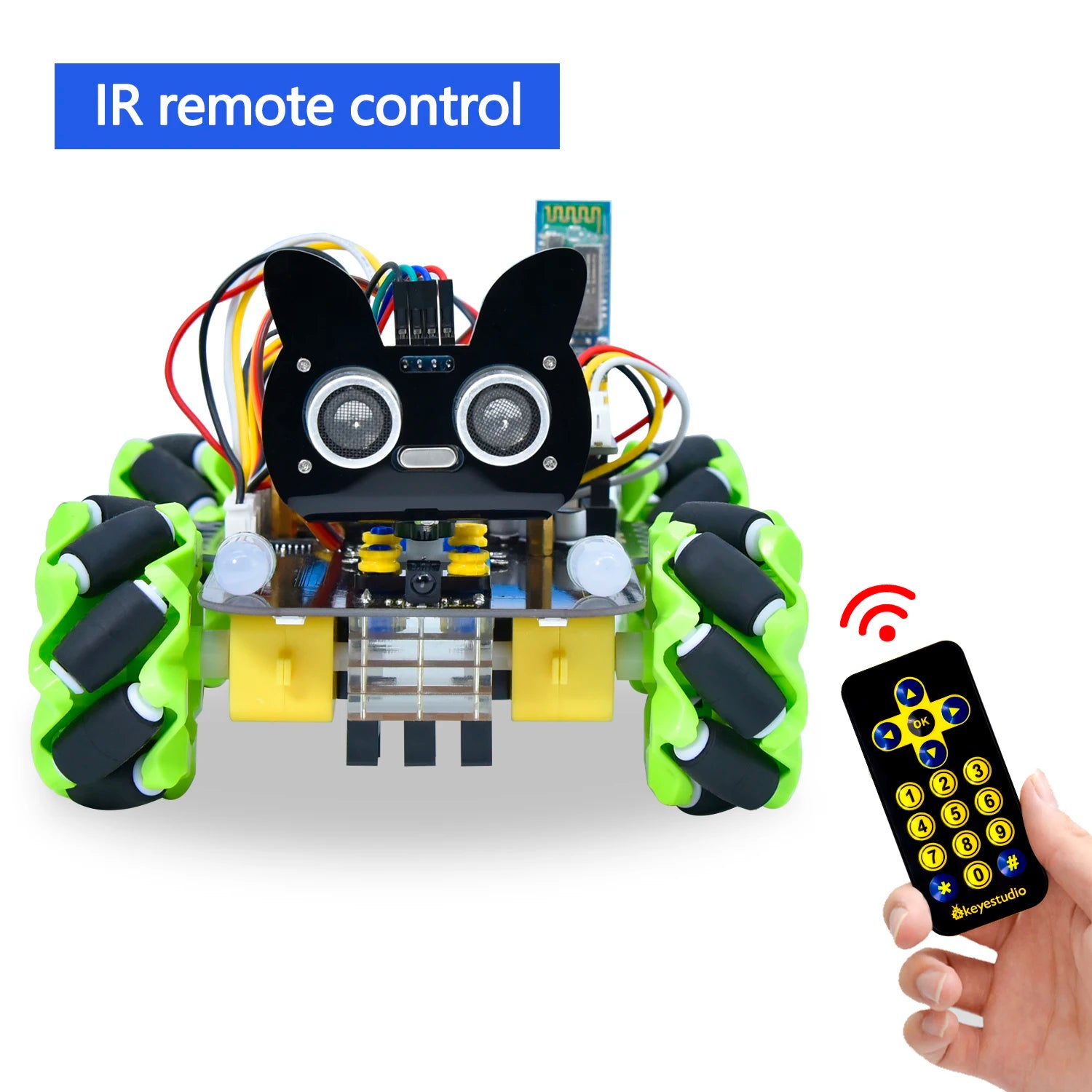

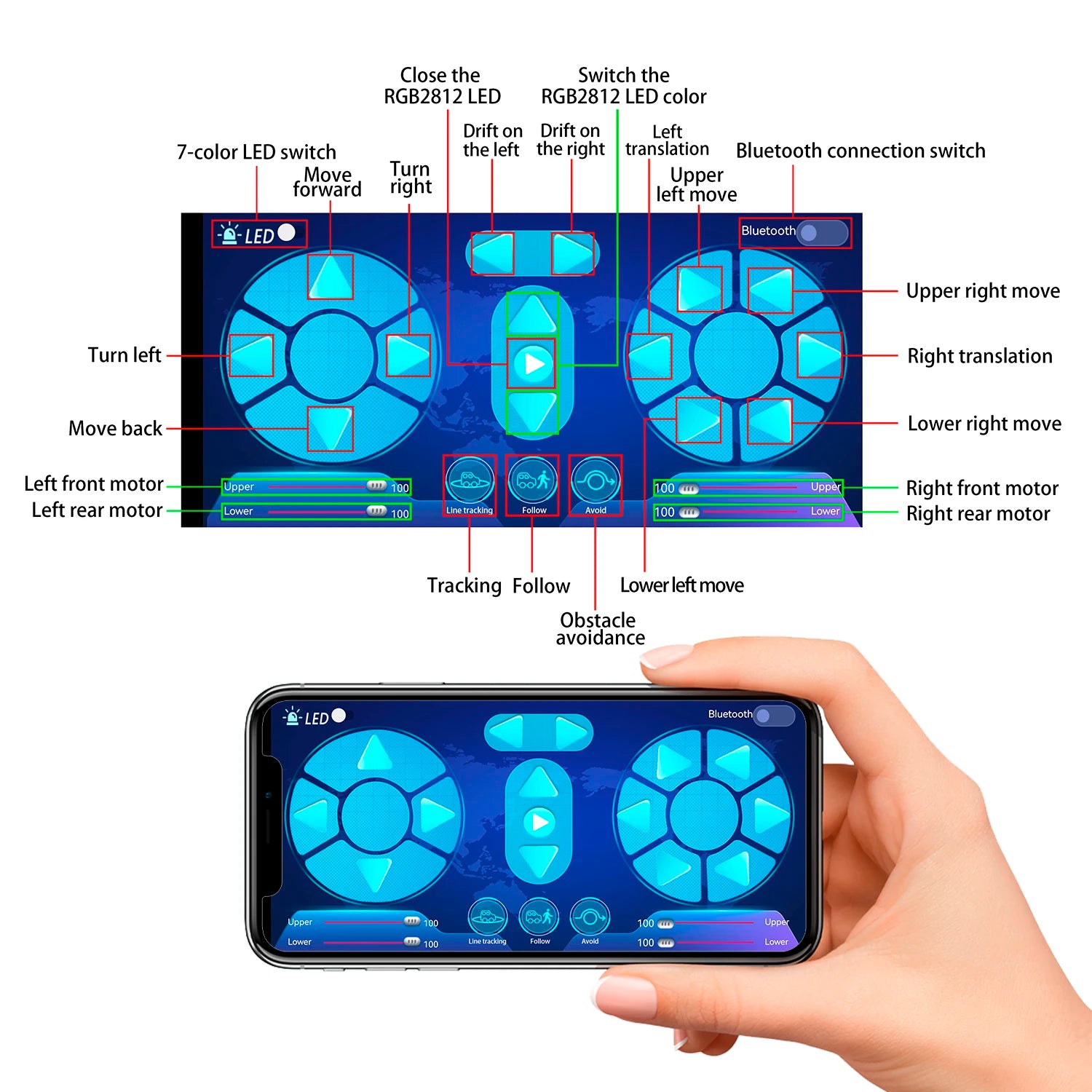

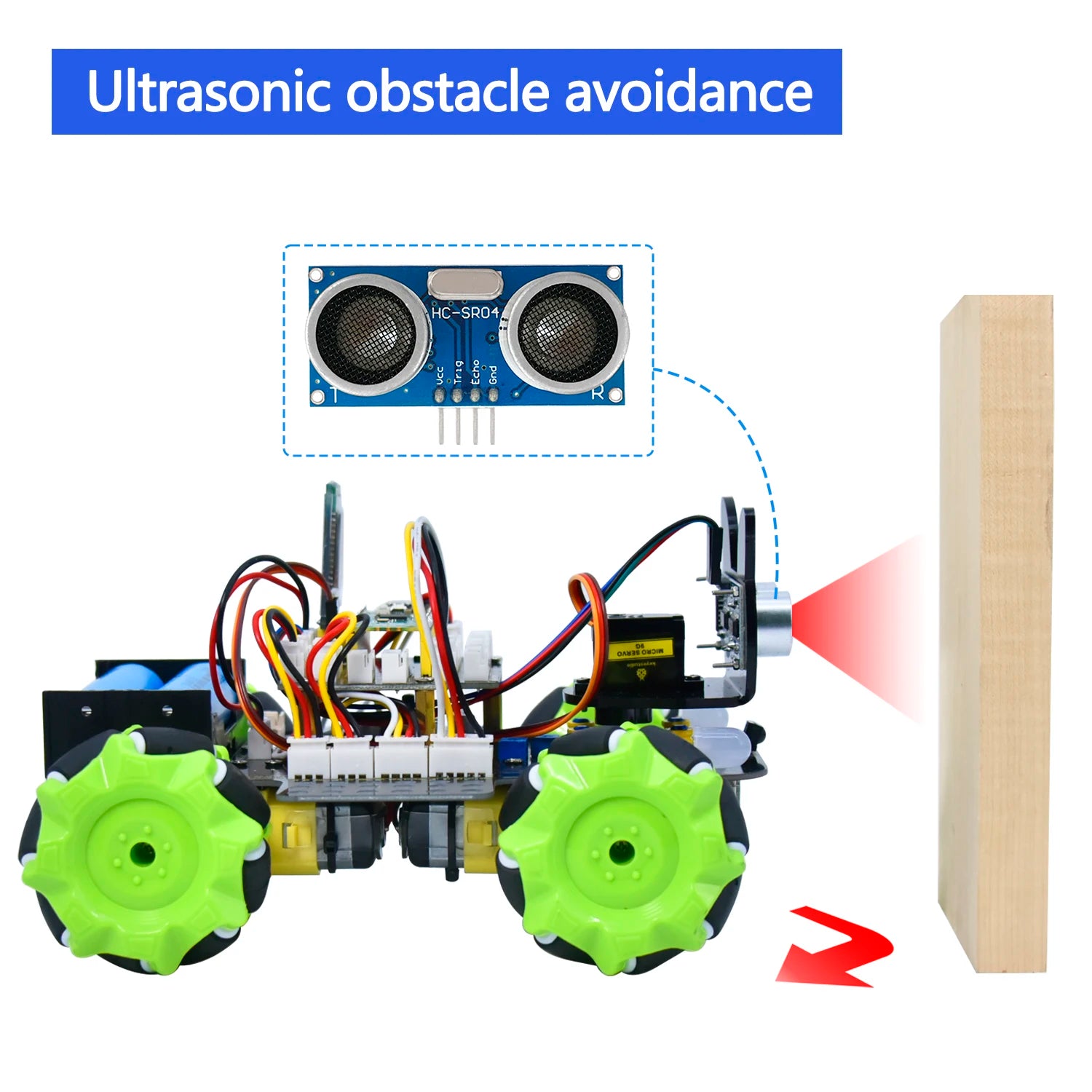

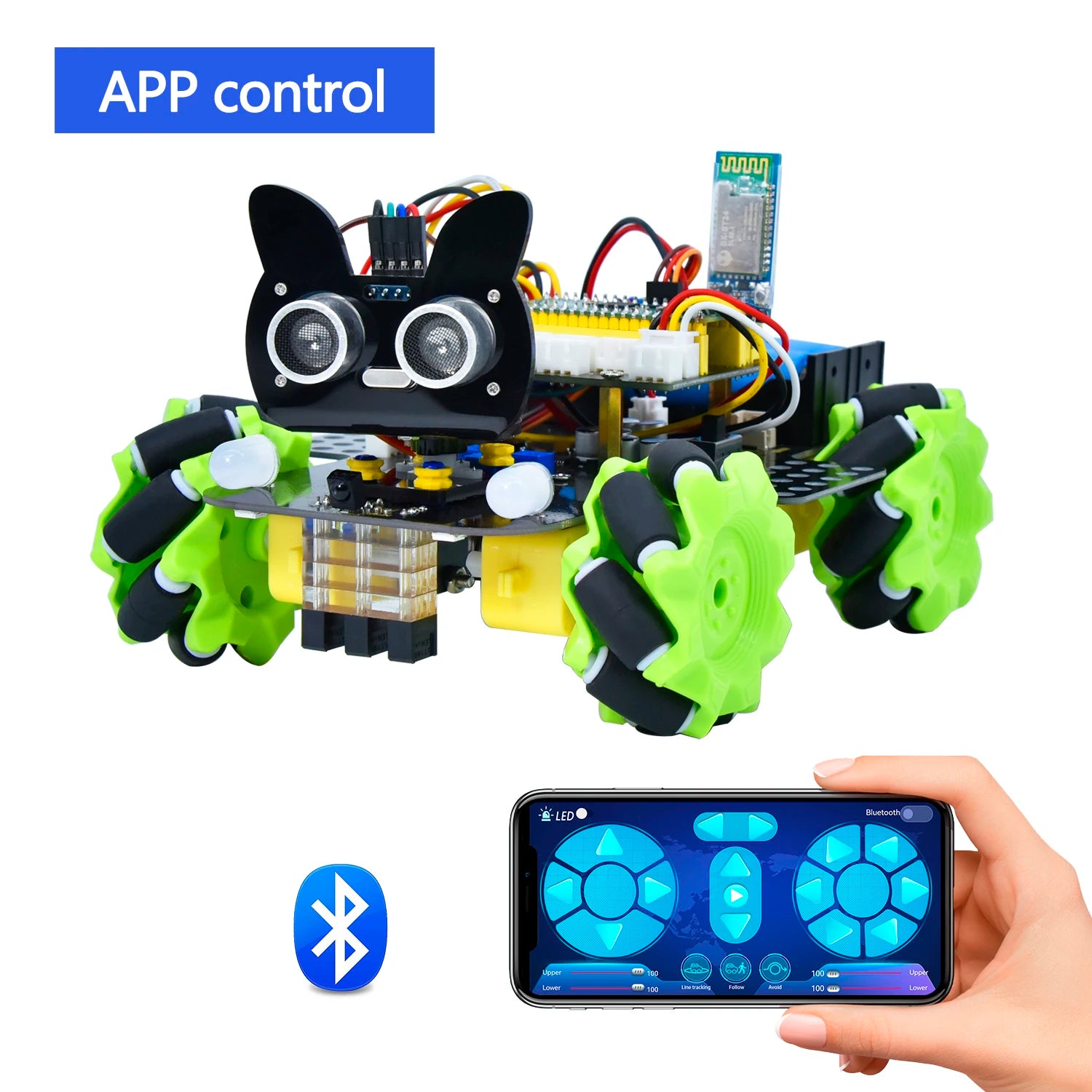

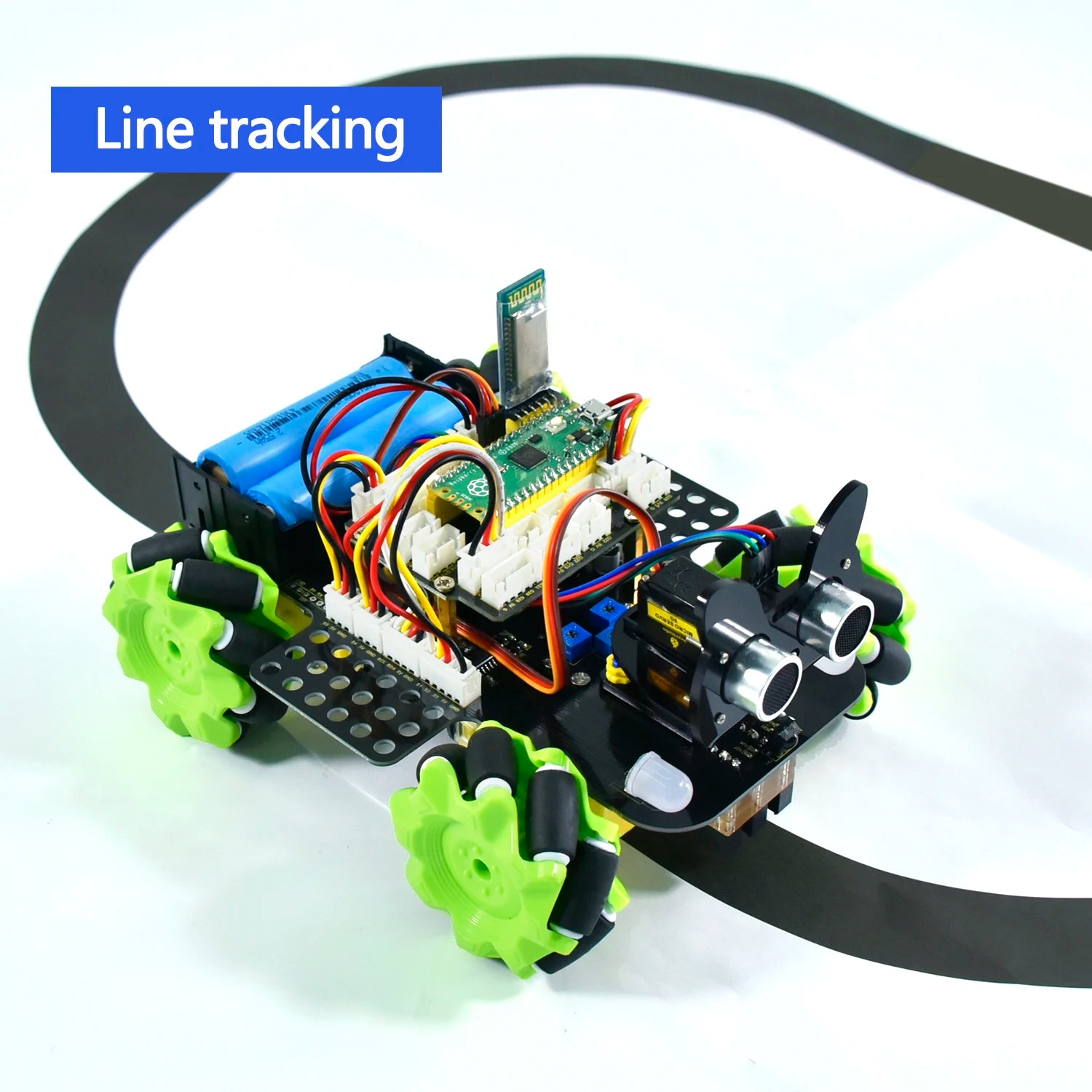

• Versatile Movement: Features adjustable motor speed (up to 200RPM) and supports multiple driving modes including line tracking, ultrasonic obstacle avoidance, IR remote control, and Bluetooth control.

Technical Specifications

• Brand: Keyestudio

• Model: KS3029

• Platform: Designed for Raspberry Pi

• Input Voltage (Port): DC 6V - 9V

• System Operating Voltage: 5V

• Power Consumption: ~3W (Standard) / 14W (Max)

• Motor Speed: 200 RPM

• Dimensions: 134mm x 181mm x 75mm

• Operating Temperature: 0°C to 50°C

• Certifications: ROHS Compliant

• Condition: New

Power & Battery Information

• Batteries Not Included: Due to standard shipping regulations regarding the transport of batteries, this kit does not include batteries.

• Battery Requirement: This robot requires two 18650 lithium batteries.

• Safety Warning: When installing the batteries, please pay close attention to the positive (+) and negative (-) poles. Do not reverse the polarity, as this may damage the board.

Online Documentation For code downloads, libraries, and detailed assembly guides, please visit our wiki: Keyestudio Wiki
